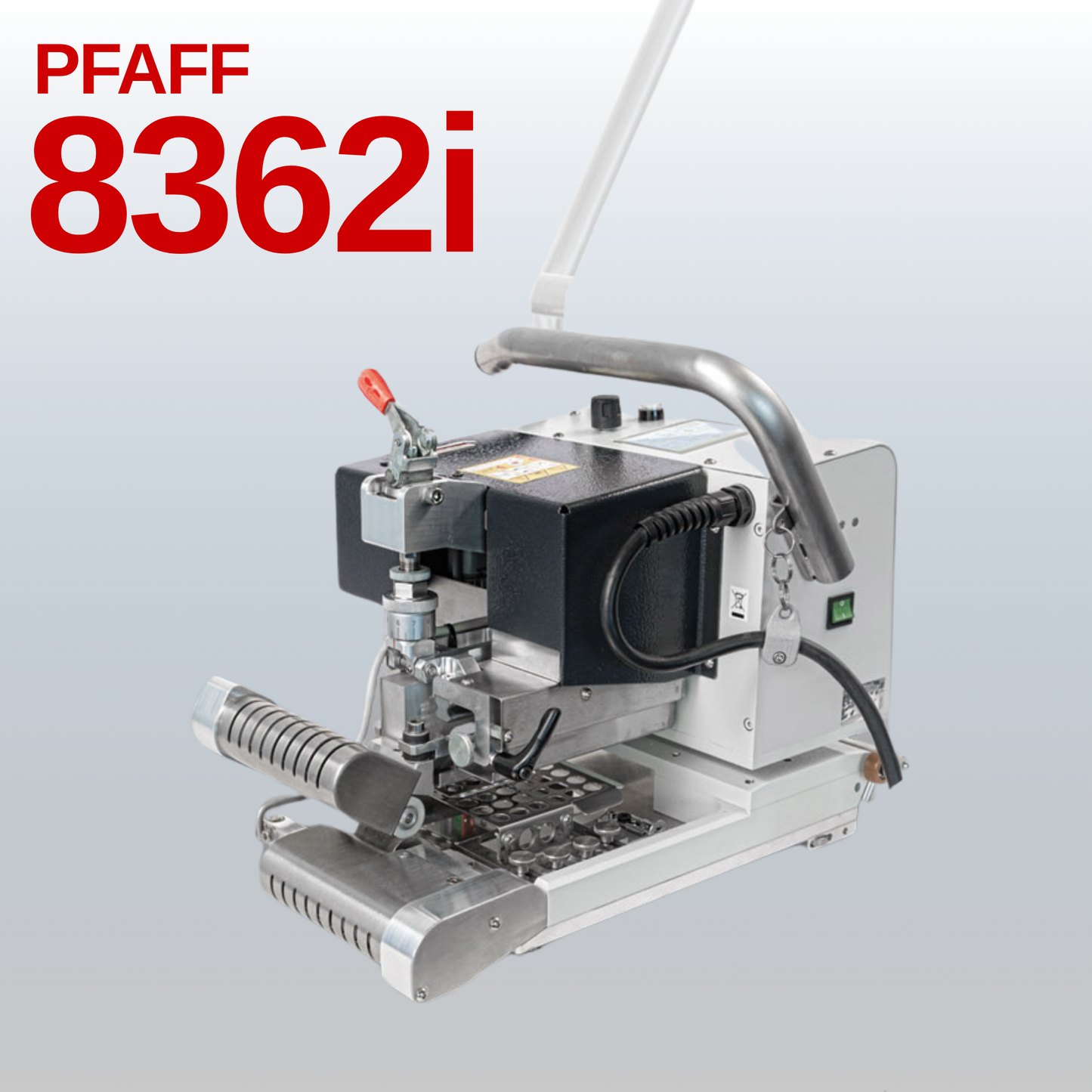

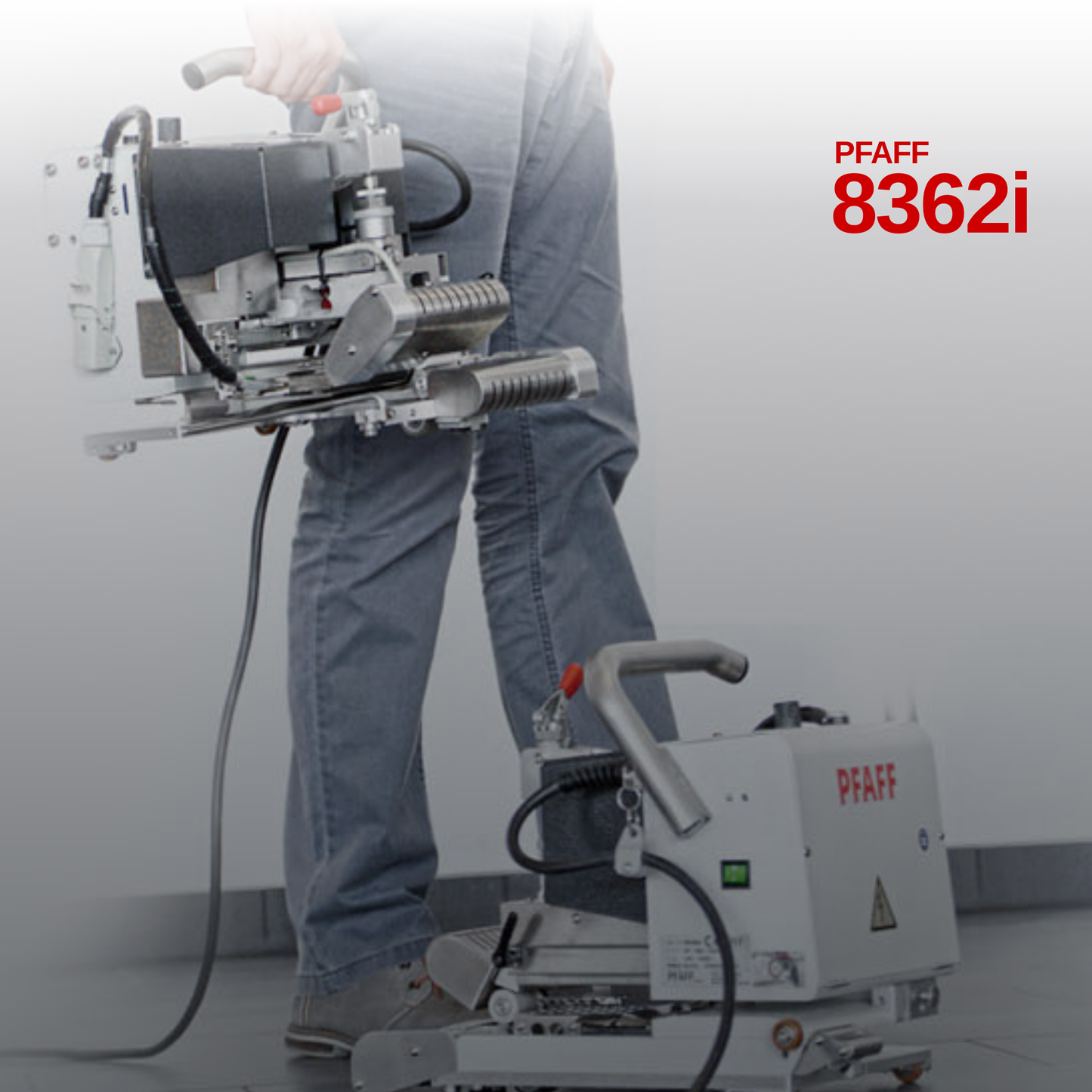

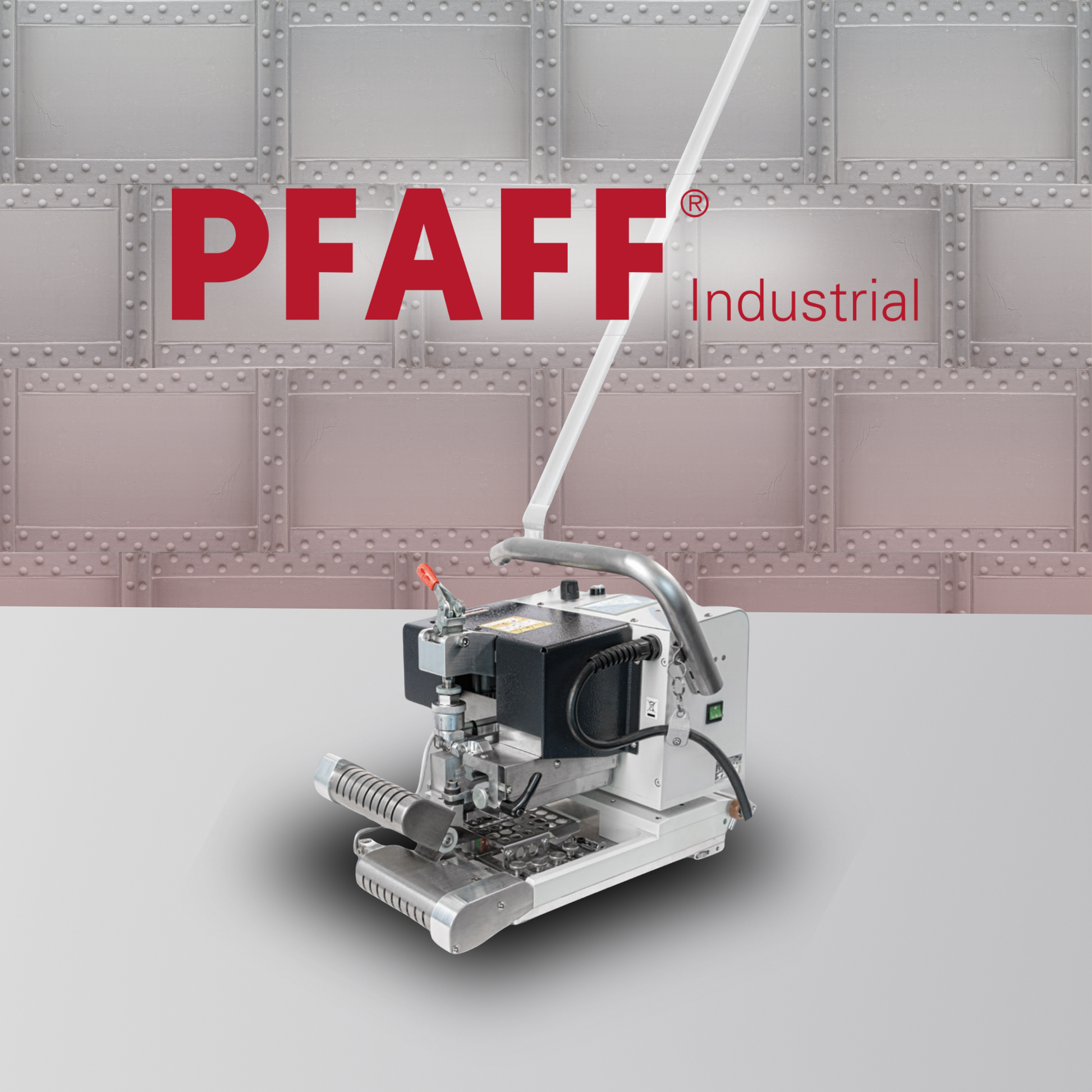

Industrial Welder PFAFF 8362i

Industrial Welder PFAFF 8362i

  • Want to know more about this machine?
  • Want a costing for machine and install?
  • Use the contact form below, including the Machine Model

Applications: Pre-fabrication of large sheets for landfills and isolation tarpaulins, swimming pool liners and covers, pond liner, conveyor belts, tubes, tents


Features:

•    Noiseless and accurate sealing with hardly any fumes
•    All welding parameters can be adjusted separately
•    Digital readout of set and actual temperature, pressure and speed
•    Easy handling as weight only 13 kg
•    Low energy consumption (<0,8 KW)
•    High seam quality: No marks outside the seam
•    Solid, long lasting construction
•    High productivity because of continuous welding system
•    Optional track guide; several machines can be operated by one person

Technical data:

•    Temperature: 0 - 500 °C
•    Welding speed: up to 10 m/min
•    Seam width: 26, 40 and 50 mm
•    Power supply: 230 V, 50/60 cycles
•    Material thickness:

  • 8362i (silver): 0.2 - 2.0 mm
  • 8362i (aluminium): 0.8 - 3.0mm
