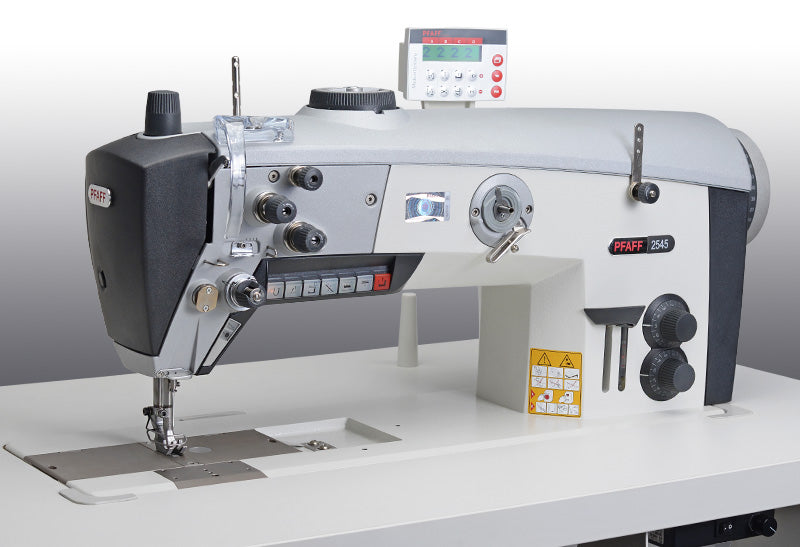

Industrial PFAFF 2545 Powerline PLUS

Industrial PFAFF 2545 Powerline PLUS

  • Want to know more about this machine?
  • Want a costing for machine and install?
  • Use the contact form below, including the Machine Model

Features

  • Top stitch quality both for top-stitching work in the visible areas and for constructive seams
  • The ergonomically designed dials guarantee quick and accurate adjustments
  • Programmable multi switch within easy reach of the sewist
  • Large clearance under machine arm (345.0 x 120.0 mm)
  • Bobbin winder with a secure and fast start of the winding process
  • Easy and fast access to all adjustments: The top arm cover and the head cover can be removed after loosening just 3 screws
  • Overload safety clutch
  • Thread trimmer, automatic presser foot lift, automatic back-tacking device electro-pneumatically controlled
  • Thread cutter is electro-pneumatically controlled
  • Second thread tension electro-pneumatically controlled
  • Automatic speed adjustment slaved to walking foot height
  • Presser foot lift up to 20 mm, 1 stitch length up to 9.0 mm
  • Panel with multi-function buttons and & programmable multi-switch
  • Integrated LED light, dimmable
  • Balance wheel markings help with in house adjustments with no need for a technician for minor problems.


Specifications

  • Needle system: 134-35
  • Needle size: C 110 - 140 Nm, D 150 - 200 Nm
  • Max. sewing speeds: 3.800 s.p.m
  • Max. stitch length: 12,0 mm
  • Max.Top feed stroke: 9,0 mm
  • Max. Thread thickness: C 15/3, D 8/3
  • Stitch type: 301 (Lockstitch)
  • Clearance under the sewing foot: max. 20,0 mm
  • Clear workspace: 345 x 120 mm
  • Connection voltage: single-phase a.c. 230 V, 50/60 Hz
View full details
