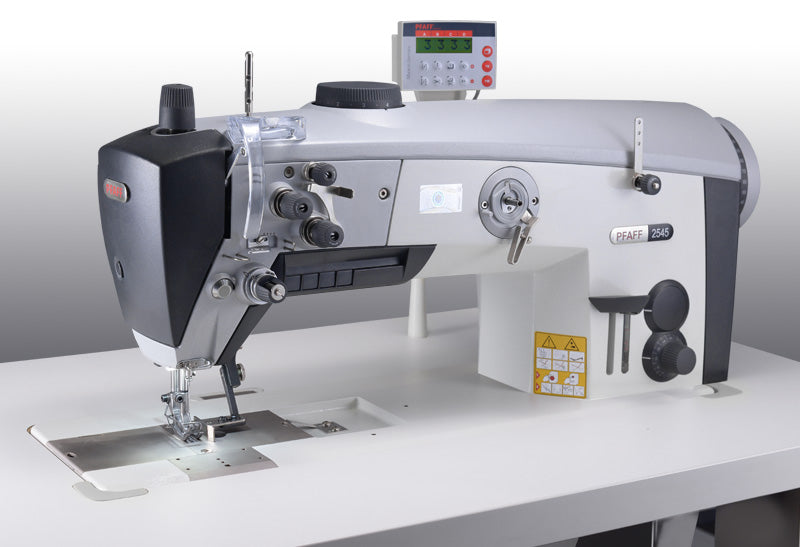

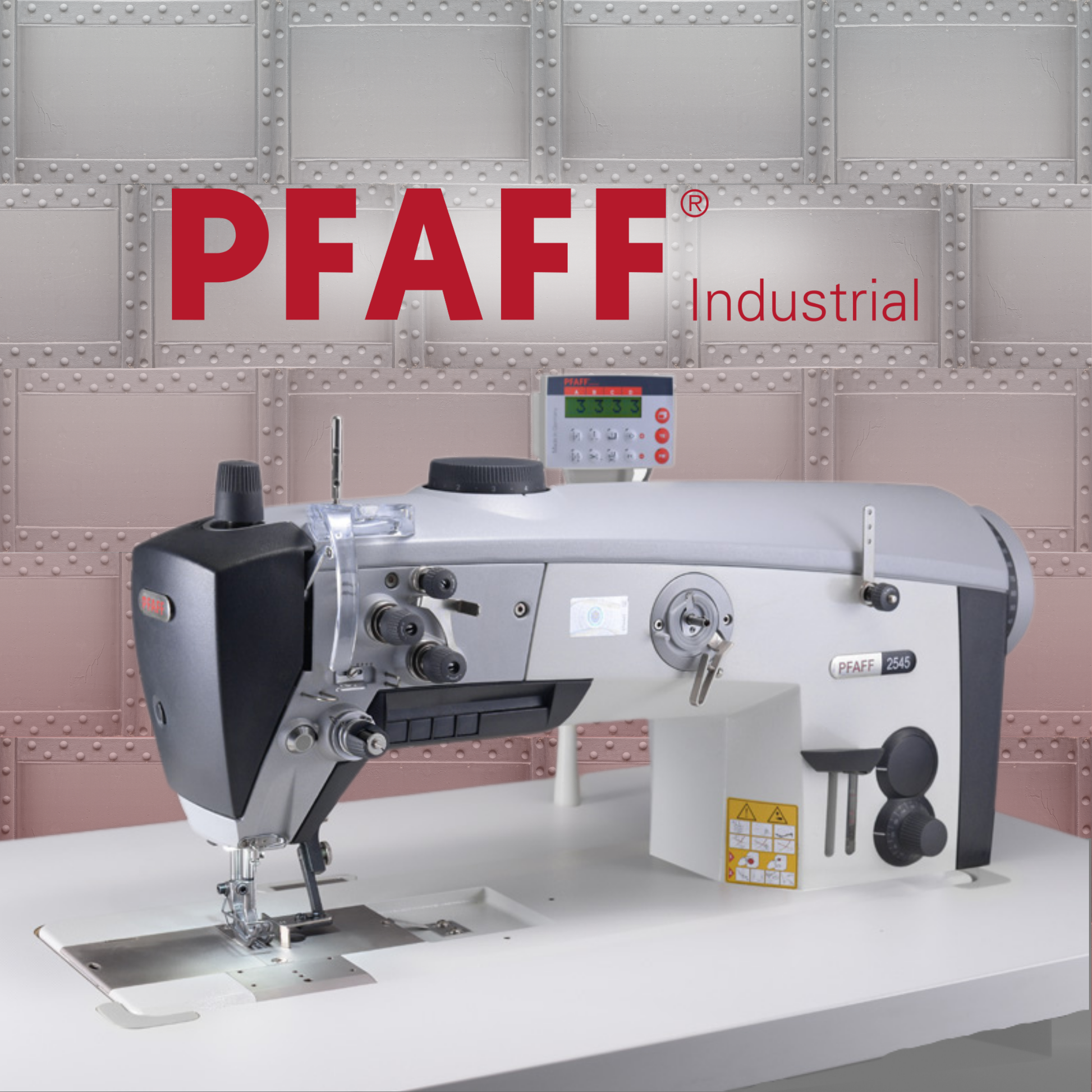

Industrial PFAFF 2545 Powerline Basic
Industrial PFAFF 2545 Powerline Basic
Want to know more about this machine?
Want a costing for machine and install?
Use the contact form below, including the Machine Model
Features
- Top stitch quality both for top-stitching work in the visible areas and for constructive seams
- The ergonomically designed dials guarantee quick and accurate adjustments
- Large clearance under machine arm (345.0 x 120.0 mm)
- Bobbin winder with a secure and fast start of the winding process
- Easy and fast access to all adjustments: The top arm cover and the head cover can be removed after loosening just 3 screws
- Overload safety clutch
Specifications
- Needle system: 134-35
- Needle size: C 110 - 140 Nm, D 150 - 200 Nm
- Max. sewing speeds: 3.800 s.p.m
- Max. stitch length: 12,0 mm
- Max.Top feed stroke: 9,0 mm
- Max. Thread thickness: C 15/3, D 8/3
- Stitch type: 301 (Lockstitch)
- Clearance under the sewing foot: max. 20,0 mm
- Clear workspace: 345 x 120 mm
- Connection voltage: single-phase a.c. 230 V, 50/60 Hz
Why PFAFF Industrial?
Excellent product know-how and continuous innovation – that is what PFAFF INDUSTRIAL stand for
PFAFF Vision
With high-tech industrial sewing machines, CNC sewing machines, sewing robots (2D/3D), welding systems, documented seam systems, multi-needle sewing systems and fully automatic production solutions, we will help our textile and leather-processing customers in future to increase the degree of automation in their production. Our automation solutions will help to significantly improve productivity and process reliability.
THE INITIATIVE BLUE COMPETENCE
Commitment to sustainability
Blue Competence is an initiative of the VDMA for promoting and communication of sustainable solutions for the Mechanical Engineering Industry. By using the trademark “Blue Competence”, they commit themselves to these twelve Sustainability Guidelines of the Mechanical Engineering Industry.
